SchemataCAD viewer DWG/DXF

Features SchemataCAD viewer DWG/DXF

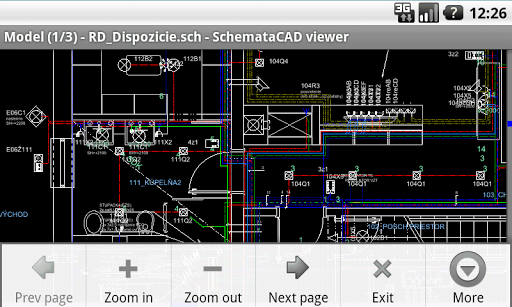

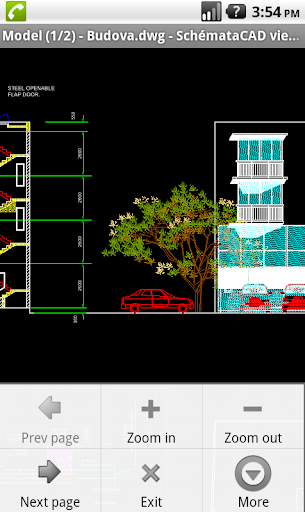

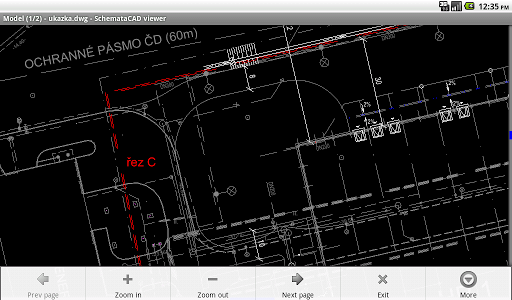

In SchemataCAD viewer you can easily view 2D CAD drawings stored on your tablet or mobile phone.
It is also possible to open a drawing directly from an email attachment, web page or from "file manager"Viewer opens CAD file formats:- DWG (up to the latest version 2022 - AC1032)- DXF (all versions)- DGN (only older format V7)- SCH (format of software SchemataCAD)- others formats: EMF, PNG, BMP, JPGViewer contains some AutoCAD SHX standard fonts.
Also are accepted other SHX (or SHP) fonts or shapes.
I you are opening SHX or SHP fonts in this viewer - so viewer will offer to copy required font into program working folder: /sdcard/Android/data/com.elmer.SchemataCAD_viewer/files/fontsLimitations:- Opening encrypted DWG files is not supported- Size of available memory is limited, sometimes it is not possible to open very big drawings, for example 20MB file size.- SHX "Big fonts" (Japan, Korean, Chinese) are not supported- external references are not supportedSupported platform: ARM 32bit / ARM 64 bit / x86-32 / x86-64.This viewer is part of CAD application named SchemataCAD.
For more information see http://www.elmer.cz/index_en.html
